Sticky Cursor

Build a Sticky Cursor Effect with Next.js, Framer Motion and Trigonometry

A website animation tutorial featuring a sticky and magnetic cursor effect made with Next.js, Framer Motion and the Math.Atan2() function.

Live Demo Source code Video Tutorial

Initializing the project

Let's start the project by creating a Next.js application. We can do that by running npx create-next-app@latest client inside of a terminal.

Adding the HTML and CSS

We can delete everything in the page.js , global.css and page.module.css and add our own HTML and CSS, to start with a nice blank application.

We will use Sass for the stylesheets, so we can run npm i sass.
We will use Framer Motion for the animation, so we can run npm i framer-motion.

Page Component

The parent component will act as the parent of the two main components.

page.js

page.mod...

1
'use client';
2
import styles from './page.module.scss'
3
import Header from '../components/header';
4
import StickyCursor from '../components/stickyCursor';
5

6
export default function Home() {
7

8
  return (
9
    <main className={styles.main}>
10
      <Header/>
11
    //   <StickyCursor/>
12
    </main>
13
  )
14
}

Header Component

componen...

header/s...

1
import styles from './style.module.scss';
2

3
export default function Index(props, ref) {
4
  return (
5
    <div className={styles.header}>
6
        <div className={styles.burger}>
7
        </div>
8
    </div>
9
)}

We should have something like this:

Moving the Cursor

Here I'll move the cursor on mouse move with a mix of event listeners and Framer Motion.

page.js

1
import StickyCursor from '../components/stickyCursor'
2
...
3

4
export default function Home() {
5

6
  return (
7
    <main className={styles.main}>
8
      <Header/>
9
      <StickyCursor/>
10
    </main>
11
  )
12
}

To move the cursor, I use two hooks from Framer Motion:

useMotionValue: a hook that returns an object with an internal state. Allows you to animate without re-rendering the whole components.
useSpring: a hook that returns a motion value with spring physics applied.

componen...

stickyCu...

1
'use client';
2
import { useEffect } from 'react';
3
import styles from './style.module.scss';
4
import { motion, useMotionValue, useSpring } from 'framer-motion';
5

6
export default function index({stickyElement}) {
7

8
  const cursorSize = 15;
9
  const mouse = {
10
    x: useMotionValue(0),
11
    y: useMotionValue(0)
12
  }
13

14
  const smoothOptions = {damping: 20, stiffness: 300, mass: 0.5}
15
  const smoothMouse = {
16
    x: useSpring(mouse.x, smoothOptions),
17
    y: useSpring(mouse.y, smoothOptions)
18
  }
19

20
  const manageMouseMove = e => {
21
    const { clientX, clientY } = e;
22
    mouse.x.set(clientX - cursorSize / 2);
23
    mouse.y.set(clientY - cursorSize / 2);
24
  }
25

26
  useEffect( () => {
27
    window.addEventListener("mousemove", manageMouseMove);
28
    return () => {
29
      window.removeEventListener("mousemove", manageMouseMove)
30
    }
31
  }, [])
32

33
  return (
34
    <div className={styles.cursorContainer}>
35
      <motion.div
36
        style={{
37
          left: smoothMouse.x,
38
          top: smoothMouse.y,
39
        }}
40
        className={styles.cursor}>
41
      </motion.div>
42
    </div>
43
  )
44
}

We should have something like this:

Sticking the cursor

The first step to stick the cursor is to find a way to pass a ref from a component to another. We can do this using the forwardRef from React.

Here I create a ref in the parent of both components.

page.js

1
...
2
export default function Home() {
3

4
    const stickyElement = useRef(null);
5

6
    return (
7
      <main className={styles.main}>
8
        <Header ref={stickyElement}/>
9
        <StickyCursor stickyElement={stickyElement}/>
10
      </main>
11
    )
12
  }

I use the forwardRef here to pass down the ref coming from the parent.

componen...

header/s...

1
import { forwardRef } from 'react';
2
import styles from './style.module.scss';
3
import Magnetic from '../magnetic';
4

5
const Header = forwardRef(function index(props, ref) {
6
  return (
7
    <div className={styles.header}>
8
        <Magnetic>
9
          <div className={styles.burger}>
10
            <div ref={ref} className={styles.bounds}></div>
11
          </div>
12
        </Magnetic>
13
    </div>
14
  )}
15
)
16

17
export default Header

The bounds scale when we hover on it to have a larger range for the mouse leave event.
The Magnetic Component comes from an animation I made in the past.

Then I can use the ref coming from the header and stick the cursor to it.

components/stickyCursor/index.jsx

1
'use client';
2
import { useEffect, useState } from 'react';
3
import styles from './style.module.scss';
4
import { motion, useMotionValue, useSpring } from 'framer-motion';
5

6
export default function index({stickyElement}) {
7

8
  const [isHovered, setIsHovered] = useState(false);
9
  const cursorSize = isHovered ? 60 : 15;
10

11
  const mouse = {
12
    x: useMotionValue(0),
13
    y: useMotionValue(0)
14
  }
15

16
  //Smooth out the mouse values
17
  const smoothOptions = {damping: 20, stiffness: 300, mass: 0.5}
18
  const smoothMouse = {
19
    x: useSpring(mouse.x, smoothOptions),
20
    y: useSpring(mouse.y, smoothOptions)
21
  }
22

23
  const manageMouseMove = e => {
24
    const { clientX, clientY } = e;
25
    const { left, top, height, width } = stickyElement.current.getBoundingClientRect();
26

27
    //center position of the stickyElement
28
    const center = {x: left + width / 2, y: top + height / 2}
29

30
    if(isHovered){
31

32
      //distance between the mouse pointer and the center of the custom cursor and
33
      const distance = {x: clientX - center.x, y: clientY - center.y}
34

35
      //move mouse to center of stickyElement + slightly move it towards the mouse pointer
36
      mouse.x.set((center.x - cursorSize / 2) + (distance.x * 0.1));
37
      mouse.y.set((center.y - cursorSize / 2) + (distance.y * 0.1));
38
    }
39
    else{
40
      //move custom cursor to center of stickyElement
41
      mouse.x.set(clientX - cursorSize / 2);
42
      mouse.y.set(clientY - cursorSize / 2);
43
    }
44
  }
45

46
  const manageMouseOver = e => {
47
    setIsHovered(true)
48
  }
49

50
  const manageMouseLeave = e => {
51
    setIsHovered(false)
52
  }
53

54
  useEffect( () => {
55
    stickyElement.current.addEventListener("mouseenter", manageMouseOver)
56
    stickyElement.current.addEventListener("mouseleave", manageMouseLeave)
57
    window.addEventListener("mousemove", manageMouseMove);
58
    return () => {
59
      stickyElement.current.removeEventListener("mouseenter", manageMouseOver)
60
      stickyElement.current.removeEventListener("mouseleave", manageMouseLeave)
61
      window.removeEventListener("mousemove", manageMouseMove)
62
    }
63
  }, [isHovered])
64

65
  return (
66
    <div className={styles.cursorContainer}>
67
      <motion.div
68
        style={{
69
          left: smoothMouse.x,
70
          top: smoothMouse.y,
71
        }}
72
        animate={{
73
          width: cursorSize,
74
          height: cursorSize
75
        }}
76
        className={styles.cursor}>
77
      </motion.div>
78
    </div>
79
  )
80
}

We should have something like this:

Stretching the cursor

components/stickyCursor.jsx

1
...
2
import { motion, useMotionValue, useSpring, transform, animate } from 'framer-motion';
3

4
export default function index({stickyElement}) {
5

6
  const scale = {
7
    x: useMotionValue(1),
8
    y: useMotionValue(1)
9
  }
10

11
  const manageMouseMove = e => {
12
    const { clientX, clientY } = e;
13
    const { left, top, height, width } = stickyElement.current.getBoundingClientRect();
14

15
    //center position of the stickyElement
16
    const center = {x: left + width / 2, y: top + height / 2}
17

18
    if(isHovered){
19

20
      //distance between the mouse pointer and the center of the custom cursor and
21
      const distance = {x: clientX - center.x, y: clientY - center.y}
22

23
      //stretch based on the distance
24
      const absDistance = Math.max(Math.abs(distance.x), Math.abs(distance.y));
25
      const newScaleX = transform(absDistance, [0, height/2], [1, 1.3])
26
      const newScaleY = transform(absDistance, [0, width/2], [1, 0.8])
27
      scale.x.set(newScaleX);
28
      scale.y.set(newScaleY);
29
     ...
30
    }
31
    ...
32
  }
33

34
  const manageMouseLeave = e => {
35
    ...
36
    animate(cursor.current, { scaleX: 1, scaleY: 1 }, {duration: 0.1}, { type: "spring" })
37
  }
38

39
  useEffect( () => {
40
    stickyElement.current.addEventListener("mouseenter", manageMouseOver)
41
    stickyElement.current.addEventListener("mouseleave", manageMouseLeave)
42
    ...
43
    return () => {
44
      stickyElement.current.removeEventListener("mouseenter", manageMouseOver)
45
      stickyElement.current.removeEventListener("mouseleave", manageMouseLeave)
46
      ...
47
    }
48
  }, [isHovered])
49

50
  return (
51
    <div className={styles.cursorContainer}>
52
      <motion.div
53
        ref={cursor}
54
        style={{
55
          scaleX: scale.x,
56
          scaleY: scale.y,
57
          ...
58
        }}
59
        ...
60
      </motion.div>
61
    </div>
62
  )
63
}

We should have something like this:

Rotating the cursor

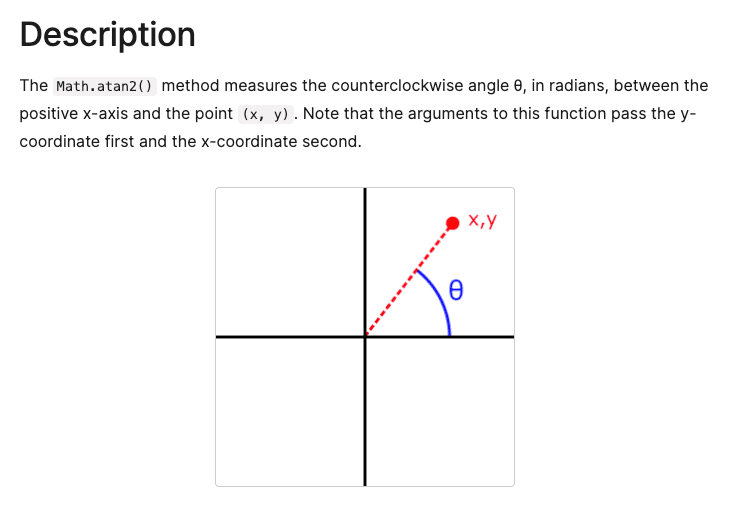

To rotate the cursor, I use the Math.Atan2() function with the transformTemplate tag to change the order of the transform property.

We can calculate the necessary angle by using the distance inside the Math.Atan2() function.

components/stickyCursor.jsx

1
...
2
import { motion, useMotionValue, useSpring, transform, animate } from 'framer-motion';
3

4
export default function index({stickyElement}) {
5

6
    ...
7
    const rotate = (distance) => {
8
        const angle = Math.atan2(distance.y, distance.x);
9
        animate(cursor.current, { rotate: `${angle}rad` }, {duration: 0})
10
    }
11

12
    const manageMouseMove = e => {
13
        const { clientX, clientY } = e;
14
        const { left, top, height, width } = stickyElement.current.getBoundingClientRect();
15

16
        //center position of the stickyElement
17
        const center = {x: left + width / 2, y: top + height / 2}
18

19
        if(isHovered){
20

21
        //distance between the mouse pointer and the center of the custom cursor and
22
        const distance = {x: clientX - center.x, y: clientY - center.y}
23

24
        //rotate
25
        rotate(distance)
26
        ...
27
        }
28
    }
29

30
    const template = ({rotate, scaleX, scaleY}) => {
31
        return `rotate(${rotate}) scaleX(${scaleX}) scaleY(${scaleY})`
32
    }
33

34
    return (
35
        <div className={styles.cursorContainer}>
36
        <motion.div
37
            transformTemplate={template}
38
            ...
39
        </motion.div>
40
        </div>
41
    )
42
}
43

We should have something like this:

Wrapping up

That's it for this animation!

That was a lot of work for a simple animation but it ends being super satisfying, simple and yet quite impressive. Hope you learned a lot!

-Oli

Related Animations

June 2, 2024

Mouse

Mouse Image Distortion

A website animation featuring an image distortion in a curved, using the sin function, React, React Three Fiber and Framer Motion

May 4, 2024

Mouse

Paint Reveal

A website tutorial on making a paint reveal / erasing effect using the destination out blend mode of the canvas API, made with React and Next.js

March 8, 2024

Mouse

Blend Mode Cursor

A website tutorial featuring a moving cursor on mouse move, colored with CSS blend mode difference, made with React and GSAP. Inspired by https://trionn.com/

Tutorials Demos

Design system inspired by Maxime Heckel

Sticky Cursor

Build a Sticky Cursor Effect with Next.js, Framer Motion and Trigonometry

Initializing the project

Adding the HTML and CSS

Page Component

Header Component

We should have something like this:

Moving the Cursor

We should have something like this:

Sticking the cursor

We should have something like this:

Stretching the cursor

We should have something like this:

Rotating the cursor

We should have something like this:

Wrapping up

If you liked this tutorial, leave a like, I would highly appreciate it!

Related Animations

Mouse Image Distortion

Paint Reveal

Blend Mode Cursor

Subscribe to the newsletters to stay in touch with the latest.

Getting Started

Courses

Article

Scroll

Mouse

Misc

3D

Menu

Landing Page

Archive

Sticky Cursor

Build a Sticky Cursor Effect with Next.js, Framer Motion and Trigonometry

Initializing the project

Adding the HTML and CSS

Page Component

Header Component

We should have something like this:

Moving the Cursor

We should have something like this:

Sticking the cursor

We should have something like this:

Stretching the cursor

We should have something like this:

Rotating the cursor

We should have something like this:

Wrapping up

If you liked this tutorial, leave a like, I would highly appreciate it!

Related Animations

Mouse Image Distortion

Paint Reveal

Blend Mode Cursor

Subscribe to the newsletters to stay in touch with the latest.
